| I thought I was going to be motivated
enough to do a complete run-through of the euro tail light conversion.
But, I was so anxious to get it done that I didn't take all of the pictures
I needed.
Instead, I've just posted some pics, with minor commentary. Feel free to e-mail me with any questions |

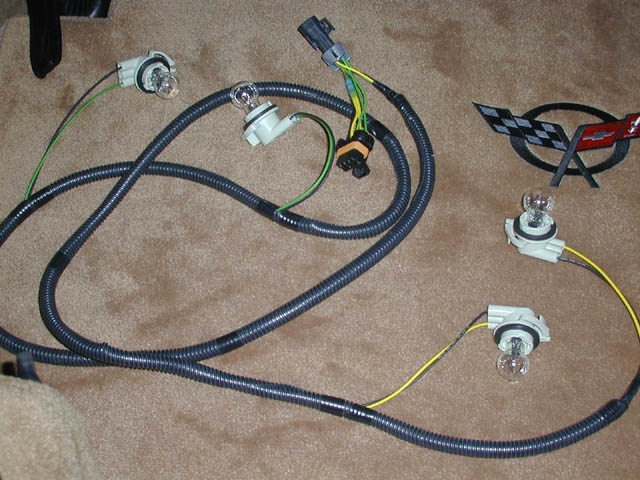

Here's a look at the European GM harness that you will be adding to your existing wiring behind the rear bumper. The harness contains just the bulbs for the blinkers. |

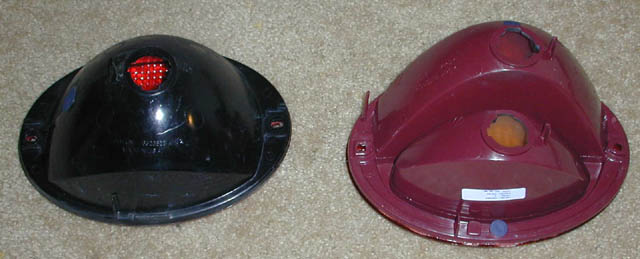

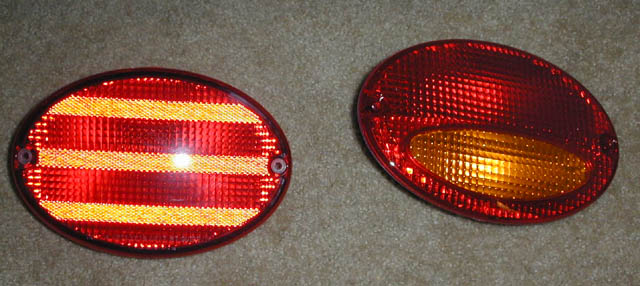

On the left, the old lamp. On the right, dual lens beauty |

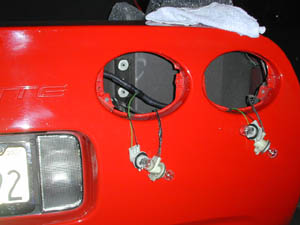

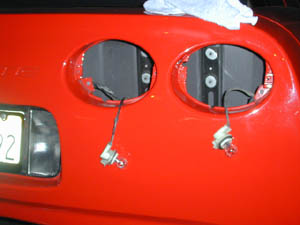

After removing the old lens housing, you'll have the wiring harness exposed. In with the new
|

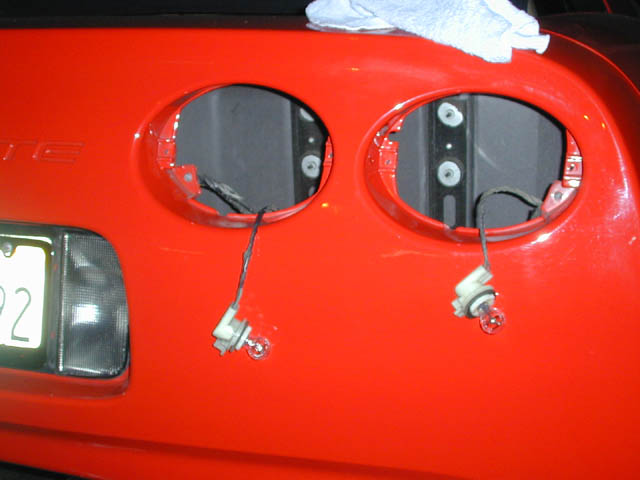

Here's a picture of the original harness

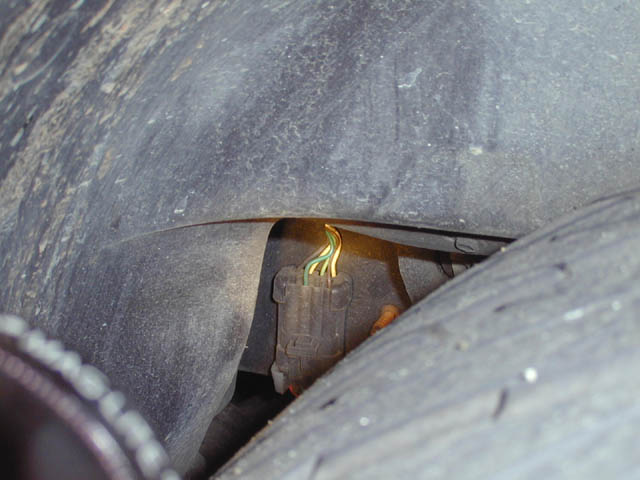

Here is where your new harness will

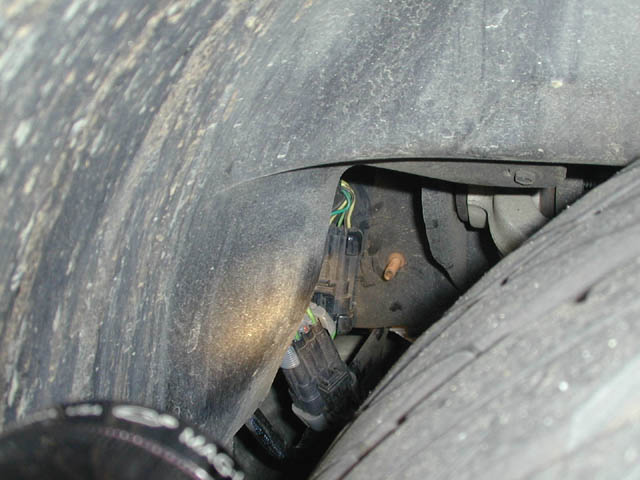

plug-in behind the passenger side wheel well. Just un-plug the old harness,
put the new one in, and attach the original to the bottom of the new one.
Simple.
|

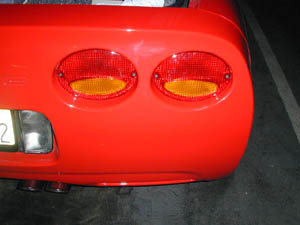

After about 45min, everything is back on and working. You will have to clip a small, white wire under the drivers side footwell to make the orange lamps blink. Not only looks good, but functional too! Now you have all four lamps illuminated, and the smaller orange lamps are your turn signals! |
